TUR: Tura
General site details
| Site name | Tura |
|---|---|
| AsiaFlux site code | TUR |
| Location | Evenkia Autonomous District in central Siberia, Russia |
| Position | 64.208888 degN, 100.463555 degE |
| Elevation | 250 m above sea level |
| Slope | Almost flat, slightly sloped down to north |
| Terrain type | higher terrace of the Nizhnya Tunguska River |
| Area | More than 250 ha |
| Fetch | 600-1200 m |
| Climate | Extremely continental, rather hot summer and very cold winter, air temperature diurnal range larger than 15 degree. (snow-fully humid-cool summer [Dfc] : Kottek et al. (2006)) |
| Mean annual air temperature | -9.2 degreeC |
| Mean annual precipitation | 317 mm |
| Vegetation type | Larix gmelinii forest |
| Dominant Species (Overstory) | Larix gmelinii |
| Dominant Species (Understory) | Lichen and mosses: Cladina stellaris, Cetraria cuculata, Pleurozium schreberi, etc. Shrubs: Betula nana, Ledum palstre, Vaccinium uliginosum, Vaccinium vitis-idaea, etc. |
| Canopy height | 3.4 m |
| Age | 105 years in 2005 |
| LAI | Less than 0.3 |
| Soil type | Cryosol (Gelisol : USDA Soil Taxonomy), permafrost table depth less than 1m |
Observation
Eddy Covariance method (CO2)
| System | Sonic anemometer and Open path IRGA |
|---|---|
| Wind speed | 3-D sonic anemometer (R3, Gill, UK) |
| Air temperature | 3-D sonic anemometer (R3, Gill, UK) |
| Water vapor | Open path gas analyzer (LI7500, LICOR,USA) |
| CO2 | Open path gas analyzer (LI7500, LICOR,USA) |
| Measurement height | 19.7 m |
| Sampling frequency | 10 Hz |
| Averaging time | 30 min |
| Data logger | CR-5000 (Campbell, USA) |
| Data storage | PCMCIA ATA Flash card 1.8 GB |
| Original data | Raw data |
Meteorology
| Observation items | Levels/Depth | Instrument |
|---|---|---|
| Global solar radiation(incoming) | 19.0 m | Net Pyrradiometer (CNR-1, Kipp and Zonen, Netherland) |
| Global solar radiation (outgoing) | 18.6 m | Net Pyrradiometer (CNR-1, Kipp and Zonen, Netherland) |
| Long-wave radiation(incoming) | 19.0 m | Net Pyrradiometer (CNR-1, Kipp and Zonen, Netherland) |
| Long-wave radiation(outgoing) | 18.6 m | Net Pyrradiometer (CNR-1, Kipp and Zonen, Netherland) |
| Net radiation | 18.8 m | Net Pyrradiometer (CNR-1, Kipp and Zonen, Netherland) |
| PPFD (incoming) | 18.8 m | Quantum sensor (LI-190SB, LI-COR, USA) |
| PPFD (outgoing) | 18.7 m | Quantum sensor (LI-190SB, LI-COR, USA) |
| Air temperature | 18.7 m | Platinum resistance thermometer (HMP45D, VAISALA, Finland) |
| Humidity | 18.7 m | Capacitive hygrometer (HMP45D, VAISALA, Finland) |
| Soil temperature | 0.05, 0.1, 0.2, 0.4, 0.5m | Platinum resistance thermometer (JIS-Pt100 4wire type) |
| Soil heat flux | 0.02, 0.05 m | Heat flux plate ( HF-01, REBS, The Netherlands) |
| Soil water content | 0.05, 0.1, 0.2, 0.4, 0.5m | TDR (CS616, Campbell, USA) |
| Wind speed | 19.5 m | Propeller anemometer (5103, R.M.Young, USA) |
| Wind direction | 19.5 m | Propeller anemometer (5103, R.M.Young, USA) |
| Barometric pressure | 17.2 m | Silicon capacitive pressure sensor (PTB210, VAISALA, Finland) |
| Precipitation | 19.1 m | Tipping bucket gauge (T34, Ohta keiki, Japan) |
| CO2 concentration | 19.7 m | CO2/H2O analyzer |
Other
| Soil respiration | Closed chamber measurements in 2005 and 2006 |
| Photosynthesis | None |
| Ecological investigation | Four permanent plots |
Observation Period and Data Availability
| Measurement Period | Early June to early September since 2004, but digital datasets are not allowed to bring out of Russia under FSTEC regulation. Measurements are continued |
|---|---|
| Measurement Frequency | Continuous |
| Data Availability | 2004 in AsiaFlux DataBase |
Contact
Yojiro Matsura (orijoy [at] ffpri.affrc.go.jp )
[Tree Census] Takuya Kajimoto (tkaji [at] ffpri.affrc.go.jp)
Department of Forest Site EnvironmentForestry and Forest Products Research Institute1 Matsunosato, Tsukuba, Ibaraki, 305-8687 Japan
Tel:+81-29-829-8227 Fax:+81-29-874-3720
Infrastructure

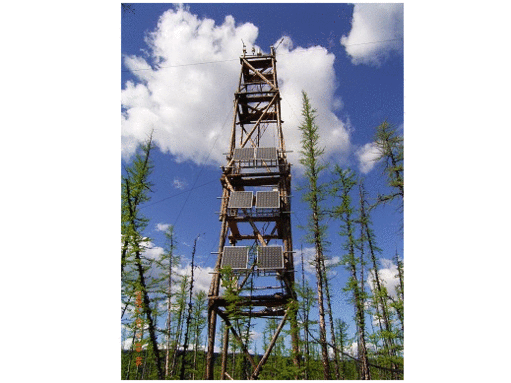

Tower
Research Fund
Global Environment Research Fund S-1 (FY2002-2006) by Ministry of Environment, Japan
Global Environment Research Fund B-053 (FY2005-2007) by Ministry of Environment, Japan
JSPS program 08037711 (FY2008-2009)
JSPS program 22405027 (FY2010-2013)
Calibration Information
Open-path IRGA was calibrated against standard gases, before and after the whole measurement period of the year (=the growing season).
Integrated results of Tura was published as one of series in Ecological Studies Volume 209, titled “Permafrost Ecosystems: Siberian Larch Forests”, eds. by Osawa, Zyryanova, Matsuura, Kajimoto, Wein.
