BFT: Betul Flux Research Site
General site details
| Site name | Betul Flux Research Site |
|---|---|
| AsiaFlux site code | BFT |
| Location | Betul, Madhya Pradesh, India |
| Position | 21o 51' 46.84" N, 77o 25' 33.67" E |
| Elevation | 507m above sea level |
| Slope | <5 degree |
| Terrain type | Flat |
| Area | 176 ha |
| Fetch | 400-1000m |
| Climate | Tropical Moist Climates (hot summer - cool winter) (As) |
| Mean annual air temperature | 27 degree C |
| Mean annual precipitation | 1016 mm |

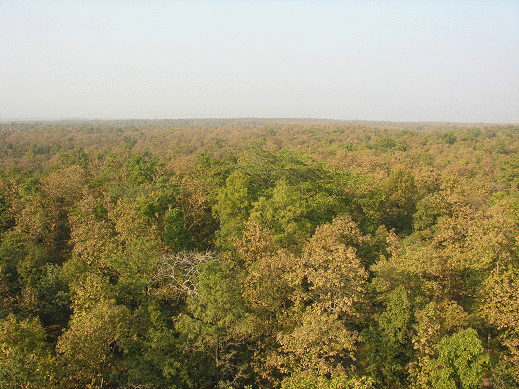

| Vegetation type | Teak mixed deciduous forest |
| Dominant Species (Overstory) | Tectona grandis (Teak) |
| Dominant Species (Understory) | Miliusa tomentosa |
| Canopy height | 22 m |
| Age | About 60 years old |
| LAI | -3.5 |
| Soil type | Black Soil |
Observation
Eddy Covariance method (CO2)
| System | Open-path system |
|---|---|
| Wind speed | 3 - axis Ultrasonic anemometer ( RM Young 81000, USA) |
| Air temperature | 3 - axis Ultrasonic anemometer ( RM Young 81000, USA) |
| Water vapor | Open-path infrared gas analyzer (IR Hygrometer LI-7500, LI-COR, USA) |
| CO2 | Open-path infrared gas analyzer (IR Hygrometer LI-7500, LI-COR, USA) |
| Measurement height | 28.2 m |
| Sampling frequency | 10 Hz |
| Averaging time | 30 min |
| Data logger | CR1000 (Campbell,USA) |
| Data storage | 2 GB Data Card |
| Original data | Raw data |
Meteorology
| Observation items | Levels/Depth | Instrument |
|---|---|---|
| Global solar radiation(incoming) | 28 m | CMP 6 (Kipp&Zonen, Netherland) |
| Global solar radiation (outgoing) | - | |
| Long-wave radiation(outgoing) | 28 m | CGR-03 (Kipp&Zonen, Netherland) |
| Long-wave radiation(outgoing | - | |
| Net radiation | - | |
| PPFD (incoming) | - | |
| PPFD (outgoing) | - | |
| Direct / diffuse radiation | - | |
| Direct / diffuse PPFD | - | |
| Air temperature | 32,28,16,8,4,2 m | Hygroclips S3 (Rotoronic,Switzerland) |
| Humidity | 32,28,16,8,4,2 m | Hygroclips S3 (Rotoronic,Switzerland) |
| Soil temperature | +5cm, 0cm, -5cm, -10cm, -20cm, -50cm, -100cm | KDS 037(Komoline, India) |
| Soil heat flux | - | |
| Soil water | 10cm, 20cm, 30cm, 40cm, 60cm, 100cm | PR2/6 (Delta-T, UK) |
| Wind speed | 32,28,16,8,4,2 m | RM Young 5103 ( Secondwind,USA) |
| Wind direction | 32,28,16,8,4,2 m | RM Young 5103 ( Secondwind,USA) |
| Barometric pressure | 28,2 m | KDS 021 (Komoline, India) |
| Precipitation | 32 m | Tipping-bucket rainguage (RM Young 52203, USA) |
| CO2 concentration | 28.2 m | IR Hygrometer LI-7500 (LI-COR, USA) |
| H2O concentration | 28.2 m | IR Hygrometer LI-7500 (LI-COR, USA) |
Other
| Soil respiration | - |
| Photosynthesis | Leaf level photosynthesis( LI 6400, USA |
| Ecological investigation | Phytosociology, Biomass, LAI (LAI 2200, CI-110) |
Observation Period and Data Availability
| Measurement Period | November 2012 till date |
|---|---|
| Measurement Frequency | Continuous |
| Data Availability | N/A |
Contact
-Dr. V.K. Dadhwal (director [at] nrsc.gov.in ) Director, NRSC & Project Director, National Carbon Project -Dr. Chandra Shekhar Jha (chandra.s.jha [at] gmail.com) Group Head, Forestry & Ecology Group & Program Co-ordinator,National Carbon Project - Dr. TR Kiran Chand (trkchand[at] gmail.com) Scientist 'SD', Forestry & Ecology Group - R Suraj Reddy (surajking123[at] gmail.com) Scientist 'SC', Forestry & Ecology Group
National Remote Sensing Centre (ISRO) Department of Space, Government of India Balanagar, Hyderabad 500 625, India Telephone (O) : +91 40 2388 4001 Fax: +91 40 2387 7210
[Sensor Integration & Maintenance] K. Venkata Raghavendra (venkataraghavendra_k [at] nrsc.gov.in )
Infrastructure
Tower 34m (Stairs not equipped) Electric Power: Batteries(DC12V) + Solar panelsSolar powered Flux Tower, Wireless Local Loop (WLL) communication,
Research Fund
Indian Space Research Organization - Geosphere Biosphere Program (ISRO-GBP)
